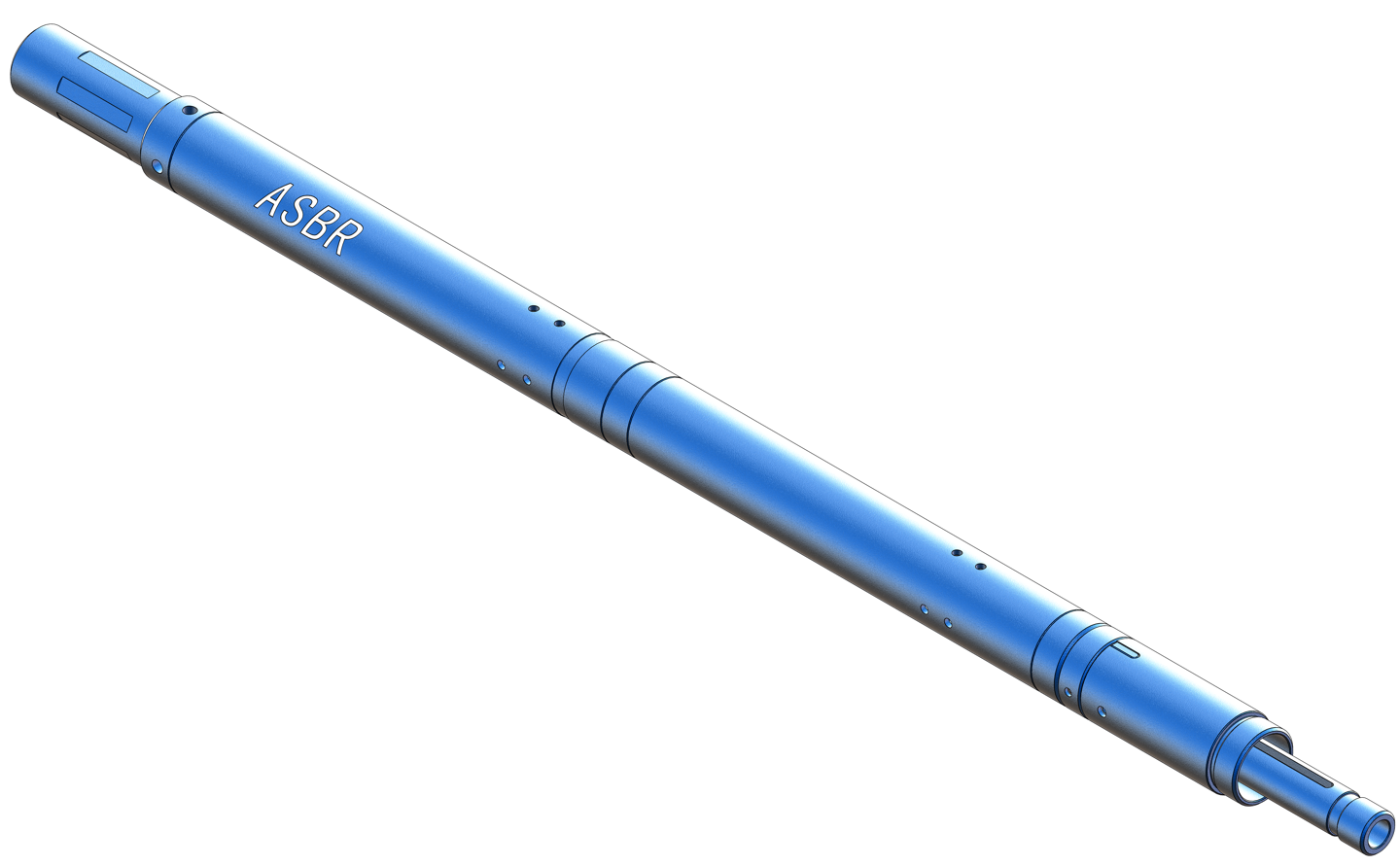

ST-J Hydraulic Setting Tool

A hydraulic setting tool for deep and high-temperature wells, enabling tubing-conveyed setting of plugs or packers normally set by wireline tools.

Technical inquiry Back to product family

Product Introduction

The ST-J Hydraulic Setting Tool is designed for deep and high-temperature wells. It can set packers or bridge plugs without complex pipe manipulation.

After the tool and packer or plug are run to depth on tubing, a setting ball is dropped and pressure is applied. The setting force is transferred to the tool, with optional tubing tension assistance.

Detailed specification tables are not published on the website. Customers can share casing size, well pressure and temperature, setting method, isolation objective, fracturing or completion process, and ASBR will support selection and document matching.

Discuss requirements Back to product family

Product Features

  • Tubing-conveyed settingEnables tubing setting of tools normally set by wireline.
  • Complex-well adaptabilityUseful in high-angle or directional wells where wireline setting is difficult.
  • Premature-set preventionShear pins in the connector sleeve help prevent premature setting.
  • Circulation capablePorts support auto-fill while running and circulation through the assembly.
  • Adjustable setting pressureAdditional pistons can reduce the required setting pressure.
